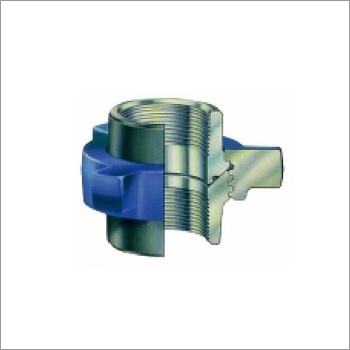

Blue Nut Grey Sub Forged Hammer Union
50 - 1000 INR/Piece
Product Details:
X
Blue Nut Grey Sub Forged Hammer Union Price And Quantity
- 50 - 1000 INR/Piece
- 100 Piece
Blue Nut Grey Sub Forged Hammer Union Trade Information
- 80000 Piece Per Week
- 1 Week
Product Description
Technical Specification
- These Hammer Unions are similar to Fig 200 with a secondary seal to aid the metal-to-metal design
- Recommended for use in corrosive environments
- Both threaded and butt weld end connections are available.
| SIZE | Nut size | Length Total | Pressure Rating (PSI) | Weight (LBS) | |||
| Inches | Inches | Inches | Standard Service | Sour Gas Service | |||
| | A | B | Cold Working | Test | Cold Working | Test | (Approx) |
| 1 | 1.96 | 2.65 | 2,000 | 3,000 | 2,000 | 3,000 | 1.75 |
| 1-1/4 | 2.17 | 2.78 | 2,000 | 3,000 | 2,000 | 3,000 | 2.37 |
| 1-1/2 | 2.14 | 2.98 | 2,000 | 3,000 | 2,000 | 3,000 | 3.39 |
| 2 | 2.90 | 3.17 | 2,000 | 3,000 | 2,000 | 3,000 | 5.47 |
| 2-1/2 | 3.63 | 4.13 | 2,000 | 3,000 | 2,000 | 3,000 | 10.00 |
| 3 | 4.26 | 4.58 | 2,000 | 3,000 | 2,000 | 3,000 | 15.03 |
| 4 | 5.00 | 4.94 | 2,000 | 3,000 | 2,000 | 3,000 | 20.95 |
| 5 | 5.50 | 6.55 | 2,000 | 3,000 | 2,000 | 3,000 | 33.26 |
| 6 | 6.43 | 6.66 | 2,000 | 3,000 | 2,000 | 3,000 | 42.50 |
| 8 | 7.43 | 7.19 | 2,000 | 3,000 | 2,000 | 3,000 | 64.00 |
| 10 | 9.00 | 9.13 | 2,000 | 3,000 | 2,000 | 3,000 | 91.00 |
